Integrated RS485 and Ethernet interfaces support all major industrial protocols making VACON 100 INDUSTRIAL easy to incorporate into all major control systems. The built-in PLC functionality enables integration of new functionality into the drive. Functional safety is improved with Safe Torque Off, which prevents the motor from generating torque on the motor shaft, Safe Stop 1 and ATEX-certified motor over-temperature protection.

The wall-mountable drive modules are easy to install and operate, and the enclosed drives are provided with a wide range of integrated options.

Supply voltages and power range

208-240 V…0.55-90 kW
380-500 V…1.1-630 kW
525-690 V…5.5-800 kW

Features and benefits

• Easy integration with plant automation due to extensive range of fieldbus options
• High reliability in challenging environments as a result of conformal coating
• Extended drive lifetime thanks to film capacitors
• No additional accessories are required due to integrated RFI filters and DC choke

Applications

Fans, pumps, conveyors, compressors, steering gear, chippers and extrudes.

Brochures

• VACON100 FLOW INDUSTRIAL FACT SHEET IP00
• VACON100 FLOW INDUSTRIAL FACT SHEET ENCLOSED DRIVE
• VACON100 FLOW INDUSTRIAL SELECTION GUIDE

The post VACON 100 INDUSTRIAL appeared first on drivetech.gr.

When used with a shore-supply solution, VACON NXP Grid Converter allows electrical power to be sourced from the local grid via a set of cables, rather than the ship’s main engine or generators. This process, sometimes known as ‘cold ironing’, has a significantly positive impact on fuel economy. It causes reductions in CO2, NOx and SOx emissions, as well as noise and vibration levels.

VACON NXP Grid Converter can also be applied to shaft-generator solutions, ensuring that propulsion machinery is able to operate at various speeds. The shaft generator decouples shaft RPMs from the electricity (frequency) which allows better electrical quality and improved fuel economy. Additionally, power can either be taken from or entered into the propeller shaft. This is particularly useful for ships that often alternate their speeds as it creates fuel savings and minimizes exhaust emissions by up to 15%. It also creates an emergency mode meaning that the vessel can operate even if the main engine fails.

Supply voltages and power range

Air cooled:

3 x 380-500 V…180-1100 kW
3 x 525-690 V…200-1200 kW

Liquid cooled:

3 x 380-500 V…160-1800 kW
3 x 525-690 V…210-1800 kW

Features and benefits

• Reduced fuel consumption as electrical power can be sourced from the grid
• Lower CO2, NOx and SOx emissions as the main engine can be shut down
• Conforms to ABS and DNV standards
• Improved energy efficiency as engine speed can be optimized
• Liquid and air cooled solutions available

Applications

Shaft generators and shore-supply systems.

Brochures

• NXP GRID CONVERTER SELECTION GUIDE

The post VACON NXP Grid Converter appeared first on drivetech.gr.

Specifically designed features include Multipump solutions and application selection menus. They enhance pump performance and protect pipes and equipment to ensure reliable operation. Standard PID control uses a sensor to control pump speed instead of an external controller. This helps the drive to quickly react to fluctuations in demand for accurate process control and optimized energy savings.

Power range and supply voltages

3 x 208-240 V…0.55-90 kW
3 x 380-500 V…1.1-630 kW
3 x 525-690 V…5.5-800 kW

Features and benefits

• Fast and efficient system integration thanks to dedicated functionality for pump, fan and compressor applications
• Extended drive lifetime and minimized lifecycle costs due to electrolytic-free DC link capacitors
• Easy commissioning and start-up as a result of graphical keypad and wizard guides
• Efficient integration into automation systems thanks to built-in Ethernet and RS485 communication

Applications

Fans, pumps, compressors, chillers and distribution, desalination and water-treatment applications.

Brochures

• VACON100 FLOW _ INDUSTRIAL SELECTION GUIDE

The post VACON 100 FLOW appeared first on drivetech.gr.

The post VACON NXP Air Cooled appeared first on drivetech.gr.

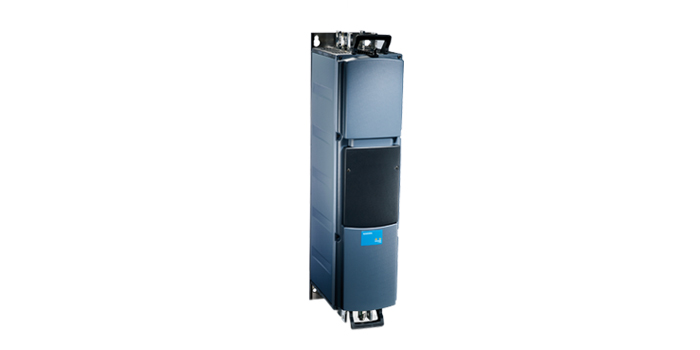

Powerful performance in extreme conditions

With one of the best power/size ratios, VACON® NXP Liquid Cooled drives are ideal for applications where space is at a premium or air cooling is difficult. Heavy industries with harsh operating conditions, such as in marine, offshore and mining environments benefit from the drive’s compact design and robust reliability.

Liquid-cooled AC drives can be used in many combinations, from a single dedicated frequency converter to large-scale common DC bus systems. Packed with features, these fully standardized drives maximize the utilization of space while minimizing overall lifecycle costs.

As a high degree of protection (IP54 or higher) can easily be achieved with these drives, they can be installed almost anywhere in a plant or on a vessel. This eliminates the load on air-conditioning systems in electrical rooms reducing costs and installation time, and makes them ideal for retrofitting.

Servicing is fast and easy. Features such as safe torque off (STO) and safe stop 1 (SS1) improve safety, and conformal coated circuit boards enhance reliability.

Supply voltages and power range

3 x 380-500 V…132-4100 kW
3 x 525-690 V…110-5300 kW

Features and benefits

• Floor space requirements and infrastructure needs are reduced as the compact design needs no air ducts
• Investment savings as no large air-conditioning systems are needed due to minimal dissipation of heat loss to the air
• Fulfills all relevant international standards and global requirements including marine, safety, EMC and harmonics approvals
• Virtually silent operation as large cooling fans are not needed

Applications

Compressors, wind turbines, extruders, pumps, fans, conveyors, crushers, thrusters, and propulsion, test-bench, crane, winch and power-conversion systems.

Brochures

• NXP LIQUID COOLED FACTSHEET
• NXP LIQUID COOLED SELECTION GUIDE

The post VACON NXP Liquid Cooled appeared first on drivetech.gr.

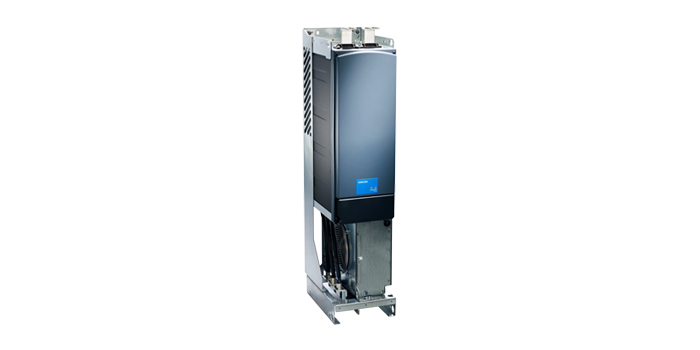

Supply voltages and power range

Inverter units
3 x 380-500 V…1.5-1850 kW
3 x 525-690 V…3-2000 kW

Features and benefits

• Reduced energy costs as regenerative front-end feeds excess braking energy back into the network
• Investment costs are low as a result of reduced power cabling and installation time
• Cost and space savings as optimized module design reduces need for additional engineering and cabinet space
• Lower system complexity thanks to five built-in expansion slots for additional I/O, fieldbus and functional safety boards
• Improvements in drive line-up tolerance to voltage dips/sags and minimized harmonic distortion are possible as a result of the active front-end unit
• Easy installation of compact option boards

Applications

The post VACON NXP Common DC BUS appeared first on drivetech.gr.

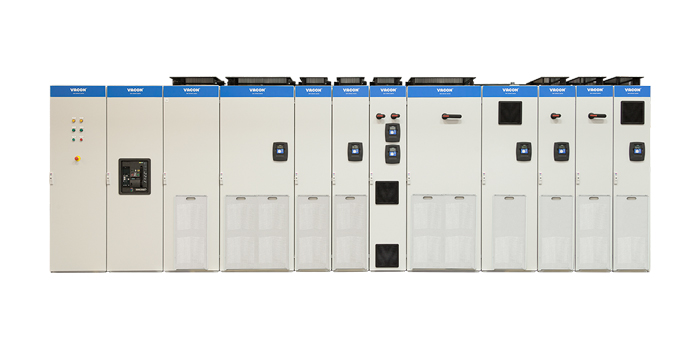

The post VACON NXP System Drive appeared first on drivetech.gr.

Supply voltages and power range

Features and benefits

• Using the same VACON® NXP hardware and control platform, DC/DC converters require very little additional investment for the same amount of system flexibility
• A modular solution, DC/DC converters are easily added to the DC bus of a system providing almost instant access to additional DC sources and easy expansion
• Utilizing the same VACON® NXP hardware configurations, service teams require little to no additional training
• Wide range of current ratings ensures simpler integration of an extensive variety of common battery bank voltages
• Aging battery stacks are easy to replace to ensure reduced downtime
• Compatible with a wide variety of DC voltage sources or energy storage mediums

Applications

• Peak shaving
• Integrating renewable energy sources (solar, fuel cells) to common DC bus systems
• Adding energy storage (batteries) to common DC bus systems

Brochures

• NXP DC DC CONVERTER FACTSHEET HYBRIDIZATION

The post VACON NXP DC/DC Converter appeared first on drivetech.gr.

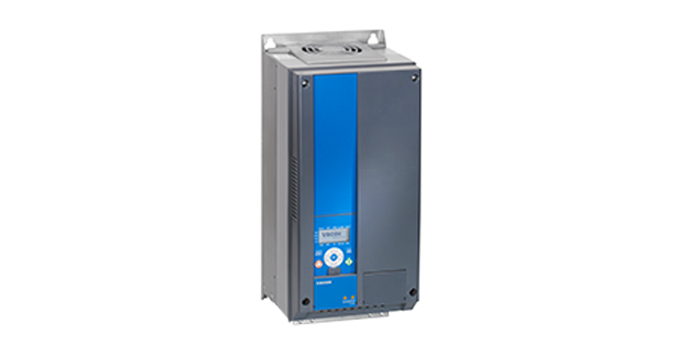

Although extremely compact in size, the VACON® 20 is packed with functionality to help improve system performance and cost efficiency.

Fast installation and set-up are possible due to easy-access terminals, integral DIN rail mounting and the parameter copying tool which can clone settings without needing mains power. The parameter list can be freely modified and application-specific parameter sets and default settings can be created. PLC functionality means individual control logic can be built into the drive and unused I/O options can be used for other machine-related tasks.

The built-in RS-485 interface provides a cost-effective and simple serial-control interface for the drive. With optional modules, VACON 20 can be connected to almost any fieldbus system based on RS-485 or Ethernet, including Profibus DP, CANOpen, DeviceNet, Profinet I/O, EtherCAT, Modbus TCP/IP and Ethernet IP.

Available in all common voltages and in a wide power range, VACON 20 optimizes the performance of, for example, vertical-movement, packaging, material-handling and flow-control applications in various process industries around the globe.

Supply voltages and power range

1 x 115 V…0.25-1.1 kW
1 x 208-240 V…0.25-2.2 kW
3 x 208-240 V…0.25-11 kW
3 x 380-480 V…0.37-18.5 kW

Features and benefits

• Individual and customized control due to built-in PLC functionality
• Optimized performance in demanding environments thanks to unique passive cooling system
• Fits into the tightest of spaces due to its slender economical design
• Supports asynchronous induction as well as permanent magnet synchronous motors
• Dedicated functionality to improve flow control in building-automation applications

 Applications

Conveyors, extruders and packaging machines, textile winders, processing and washing machines, fans and pumps.

Brochures

• VACON20 SELECTION GUIDE

The post VACON 20 appeared first on drivetech.gr.

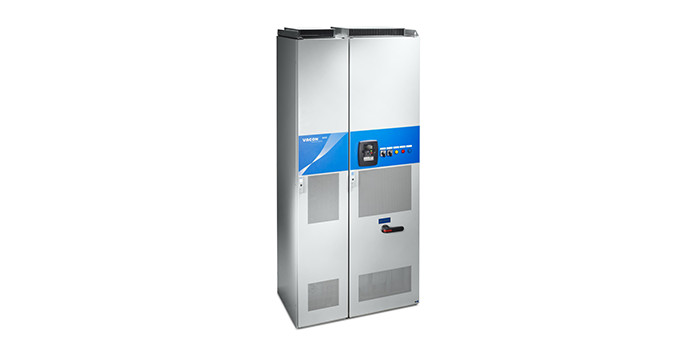

The enclosures, which feature lifting lugs for easy handling, can be either wall-mounted or free-standing. The easily accessible control compartment for relays, auxiliary terminals and other equipment, and ample space around the power terminals ensure straightforward installation and connection of power cables. And the mounting rails and pull-out jig enable fast and efficient servicing of the power unit.

Supply voltages and power range

6- and 12-pulse supplies:
3 x 380-500 V…132-1200 kW
3 x 525-690 V…110-2000 kW

AFE supplies:
500 V…132-1500 kW
690 V…110-2000 kW

Low Harmonic, Active Filter supplies:
500 V…132-560 kW
690 V…110-800 kW

Features and benefits

• Lower investment cost as no extra design, engineering or additional cooling fans are needed
• Reduced commissioning and servicing time due to easily accessible control compartment and removable keypad
• Improved serviceability thanks to mounting rails and service concept with pull-out jig
• Lower maintenance costs due to robust, type-tested design

Applications

Pumps, fans, extruders, conveyors, thrusters and power conversion and propulsion units.

Brochures

• NXP_NXC SELECTION GUIDE

The post VACON NXC appeared first on drivetech.gr.
